SIAC Fire-rated Metal Door

Fire-rated steel doors play a vital role in keeping people safe and minimizing property damage during a fire. SIAC fire doors control the spread of fire and smoke for up to 2 hours. SIAC Metal fire doors are an economical alternative to wood fire doors, when more than a 20-minute rating is required. Steel is the sole door material to deliver a 2 hour of fire-rating.

Our doors are made of high-grade steel materials and door panels filled with high-quality infill materials to provide the necessary high-performing thermal/acoustics insulation requirements. Available in both single-leaf and double-leaves panel types. Our doors are commonly used in high-rise offices, shopping centers, factories, warehouses, MRT, oil and gas plants, and marine industries, where high durability and weather resistance are needed.

SPECIFICATIONS

Door Frame

  • Made of high-quality steel with 2.0mm thick
  • Standard profile 120 x 50mm with single or double rebate

Door Panel

  • Door panel is 55mm thick, made of high grade 1.6mm steel.
  • Internally supported with rigid steel stiffeners designed to enhance the overall integrity and strength of the door
  • Filled with high density insulated elements
  • Quality fire-rated door hardwares

Finishing

Standard finishing includes undercoat primer paint layer. Optional finishing are available upon request.

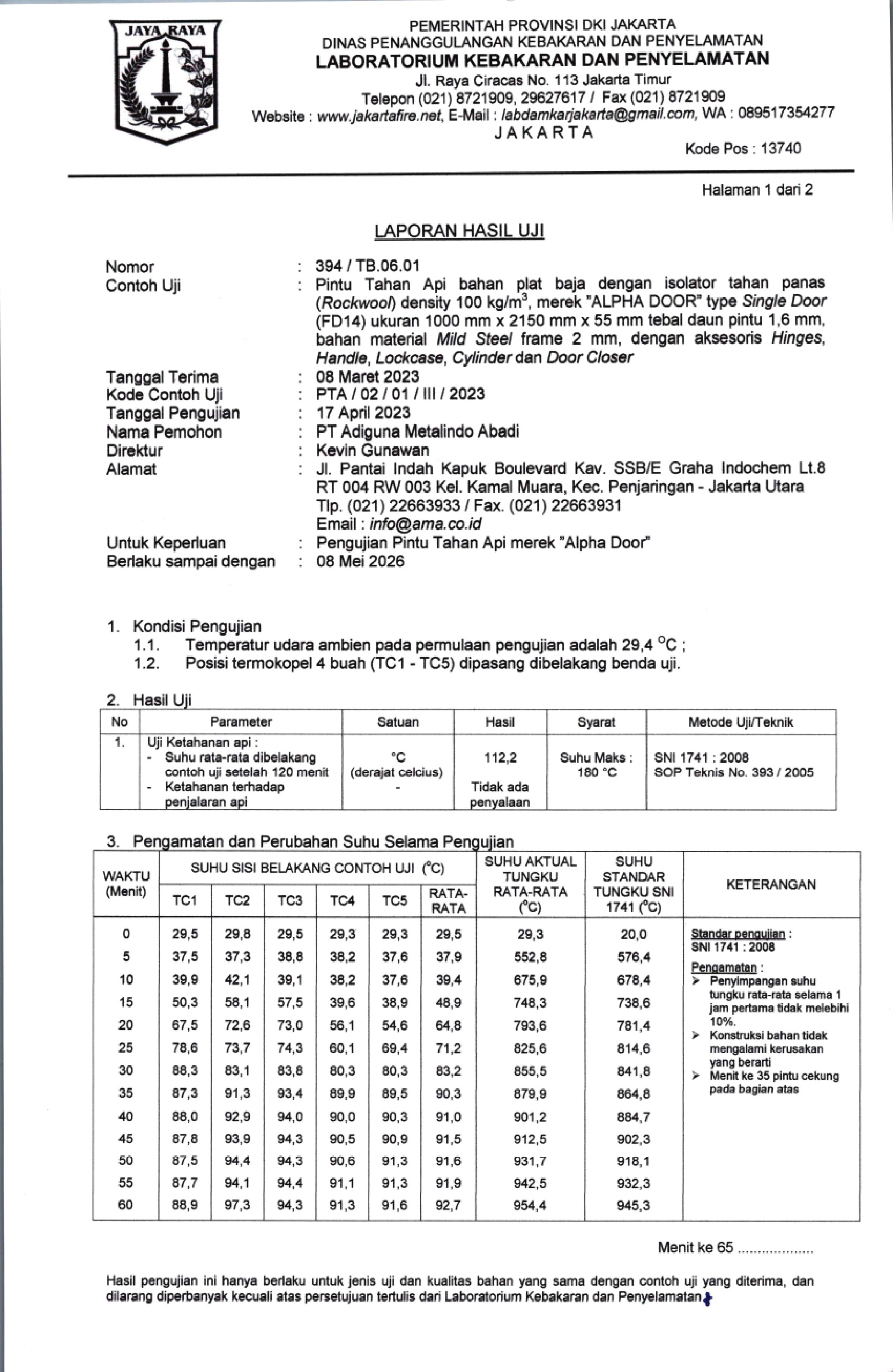

Certification

  • DKI Standard
  • Singapore Standard (SS 33:2007)

OPTIONAL FEATURES

  • Panic bar and multi locking system device
  • Vision panel – fire-rated, tempered glass
  • Stainless steel kick plate
  • Air-tight / acoustic door (STC 45-55)
  • Over-sized door up to 3.5m wide by 3.5m high is available upon request

SIAC fire rated door brochure here
